CONICAL DRUMS

BEST CONICAL DRUMS ON THE MARKET

Conical drums with standard capacity of 220 litres – 58 gallons with these features:

  • usable in combination with aseptic wrappings, in order to preserve tomato concentrate, fruit, mashed food.
  • drums can be piled up and stacked for a drastic reduction of stocking space and transport costs, and sealed with iron lid with galvanic ring or plastic lid.
  • drums can be painted inside with epoxy phenol varnishes suitable for contact with food stuffs and outside with rustproof varnish in the requested colours.
See more
fusti conici 220 lt

REQUEST A QUOTE

CONTACT US TO REQUEST A QUOTE OR MORE INFORMATION

Contact our staff if you wish to receive information on our products or request a quote.
Our up-to-date and prepared employees will answer you as soon as possible.

PRODUCT CHARACTERISTICS

Quality paint

The drum is painted with epoxy phenol varnishes suitable for contact with foodstuffs, while the exterior is protected with rustproof paint in the colour requested. The interior welding is covered with thermoplastic powder paint.

Stackable full drums

Up to two tiers of drums can be stacked above the one resting on the ground in the case of the 0,5/0,6 mm-0.002/0.024ʺ thick drum, and up to three in the case of the 0,7/0,8 mm-0.028/0.031ʺ thick drum.

fusti-conici-220-lt-pallet

Two types of closing systems

The tapered drums can be fitted with two kind of closures:

  • Iron lid with galvanized ring: this is the traditional and most common lever-lock system. This closure, with the application of a warranty seal, prevents tampering.
  • Plastic lid: the shape of the lid, combined with the plastic material used, allows a perfect seal of the drums.

220 LT - 58 GALLONS CONICAL DRUMS FOR FOOD USE

MODEL BODY THICKNESS BOTTOM THICKNESS CAPACITY (LITRES) CAPACITY (GALLONS) WEIGHT W/ PLASTIC LID WEIGHT W/ IRON LID N. OF DRUMS ON 40′ HC CONTAINER N. OF DRUMS ON 2.6 M HT. TRUCK
CP22L5 0.5 mm 0.5 mm 220 lt 58 gal 8 kg 9 kg 1,900 2,000
CP22L6 0.6 mm 0.5 mm 220 lt 58 gal 9 kg 10 kg 1,900 2,000
CP22L7 0.7 mm 0.5 mm 220 lt 58 gal 10 kg 11 kg 1,900 2,000
CP22L8 0.8 mm 0.5 mm 220 lt 58 gal 11 kg 12 kg 1,900 2,000

220 LT- 58 GALLONS CONICAL DRUMS FOR CHEMICAL USE

OUR 220 LT CONICAL DRUMS ARE AVAILABLE WITH 2” AND ¾” SCREW METAL PLUG ON THE LID

MODEL BODY THICKNESS BOTTOM THICKNESS CAPACITY (LITRES) CAPACITY (GALLONS) WEIGHT (KG) N. PER PALLET N. OF DRUMS ON
40′ HC CONTAINER
N. OF DRUMS ON 2.6 M HT TRUCK
CP22L7 0.7 mm 0.7 mm 220 lt 58 gal 13 kg 52 1,600 1,800
   UN1A2/Y220/S/**/F/SLF/LRMN028
CP22L9 0.9 mm 0.7 mm 220 lt 58 gal 16.4 kg 52 1,600 1,800
   UN1A2/X300/S/**/F/SLF/LRMN031
CP22L8 0.8 mm 0.7 mm 220 lt 58 gal 16 kg 52 1,600 1,800
       UN1A2/Y1.2/80/**/F/SLF/LRM AG51 # UN1A2/Z1.8/80/**/F/SLF/LRM/ AG51

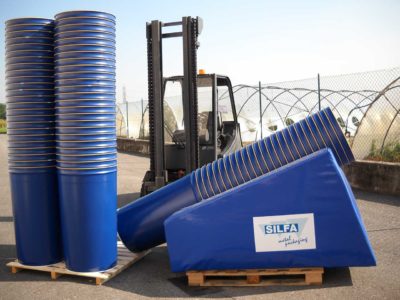

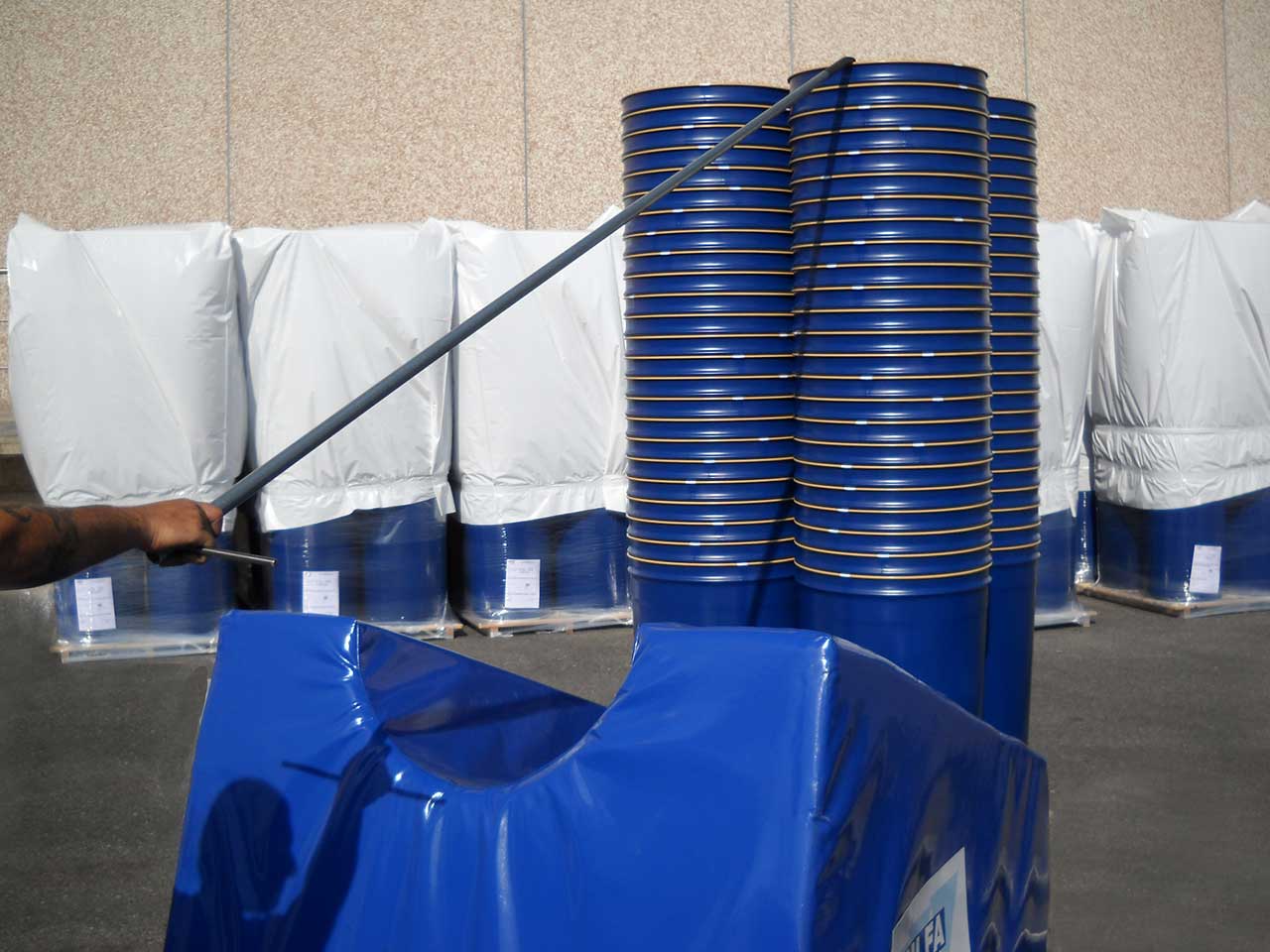

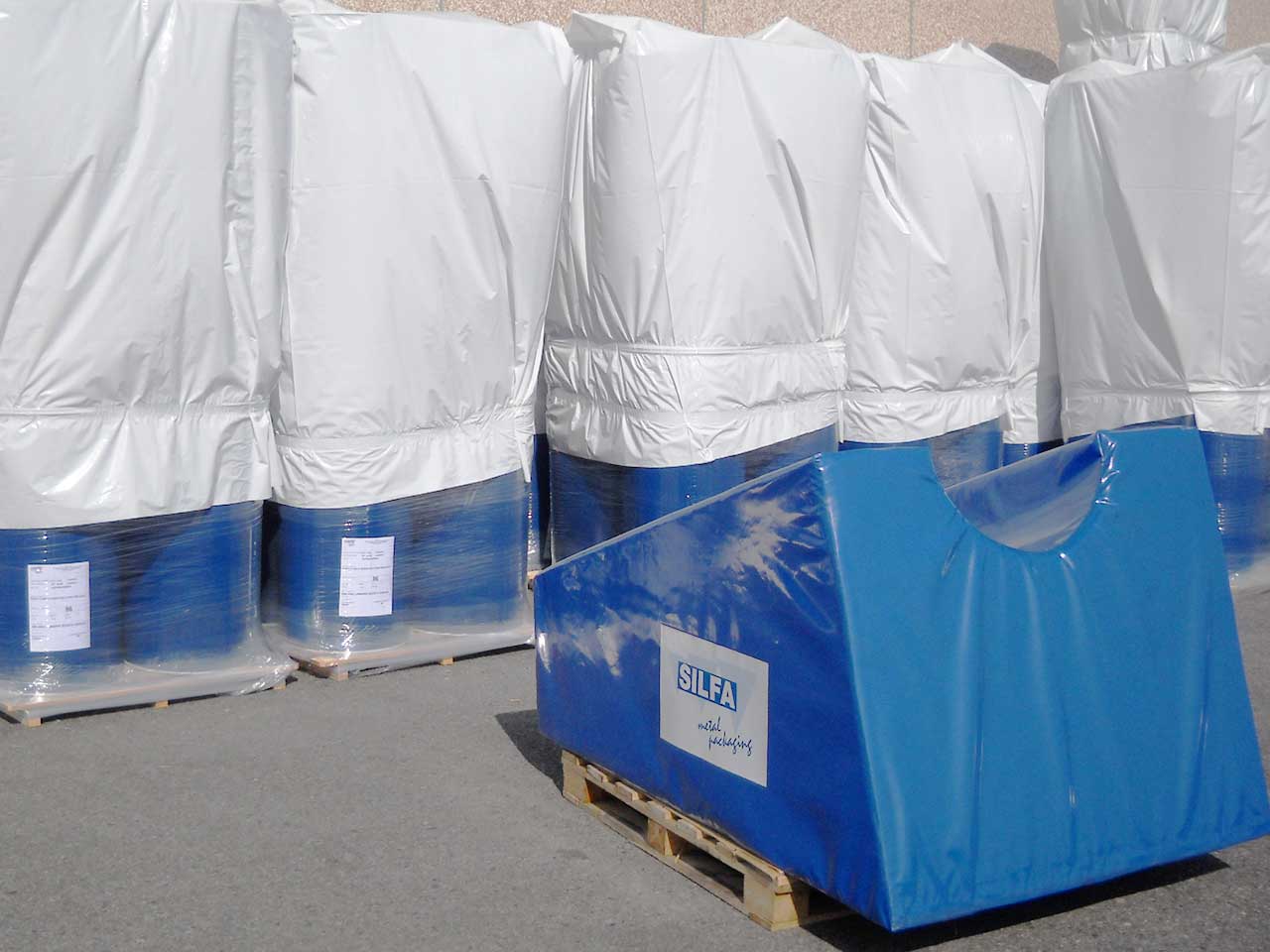

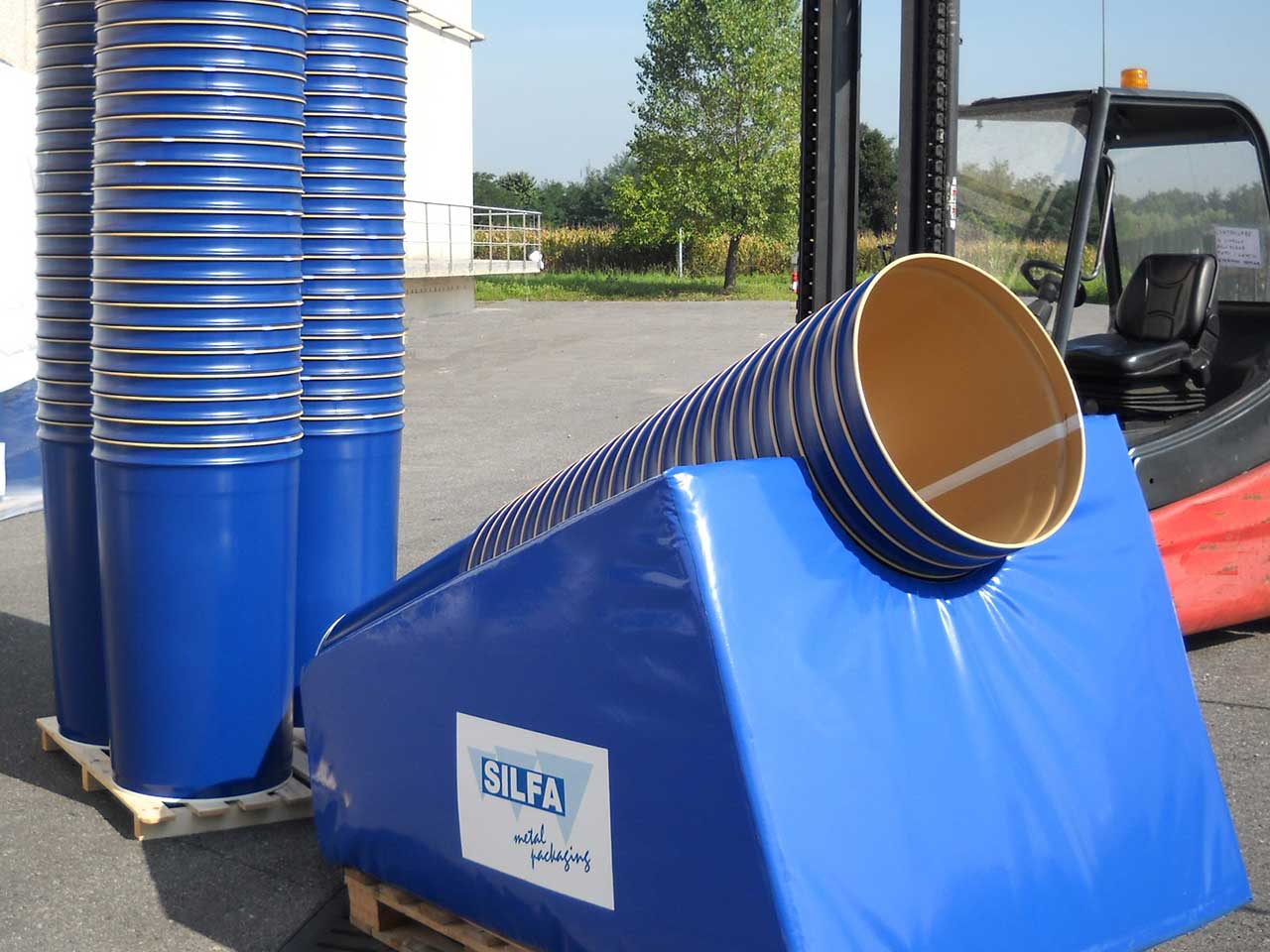

HOW TO UNPACK A PALLET OF EMPTY DRUMS
